Prepare, Compile, Define, Install, Execute a CICS (COBOL) program

Here I’m trying to cover the necessary steps to Prepare, Compile, Define and Execute a CICS COBOL program, Technically there no difference in Link edit, Define, Install and Execute a COBOL program and the programs prepared in any other languages such as Assembler, C/C++, PL\1. But yes there is difference in compiling object codes.





Step 1. Compile/Link edit a CICS COBOL Program.

IBM has supplied a standard procedure for Compile and link edit CICS-COBOL code. The pre-compile ( Translating ) will comment all the CICS commands from the source code and then replace them with specific COBOL call statements. This translated source code then passed to Compile step, which will compile the source code and create the object code. The Cobol compilation is done with IGYCRCTL compiler program. The object code then given as input to the IBM linkedit program. you can use HEWL or IEWL for this purpose, you can find this program in CEE.SCEELKED or CEE.SCEECICS this may be different in your system. The IBM supplied standard procedure name is DFHEITVL. You can find this proc in SDFHPROC,of the CICS base location. for me it was CICSTS42.CICS.SDFHPROC.  And of course you can see a lot of other procs in the CICS proclib, some of them can be used for CICS-DB2-COBOL, CICS-Assempler, CICS-C/C++, CICS-PL\1 or compile and link edit BMS Maps etc. you can then use the below jcl for precompile, Compile and Link edit your program.

//DDS1764J   JOB 'SHIBU THANNIKKUNNATH',NOTIFY=&SYSUID   //IBMLIB     JCLLIB ORDER=CICSTS42.CICS.SDFHPROC                //CPLSTP     EXEC DFHEITVL                                //TRN.SYSIN  DD DSN=TSHRCI.PGMG.CICOB(PGM1),DISP=SHR     //LKED.SYSIN DD *                                           NAME PGM1(R)                                          //

make sure that the PROGLIB in the DFHEITVL is pointed to your CICS loadlib. If you are not sure about this you can go to The JESJCL of the job for your CICS region in Spool and check for DFHRPL dd statement.

Step 2. DEFINE and INSTALL PROGRAM and TRANSACTION Entries.

You should have Administration privileges to do the below steps.

Define Program Entries.

To define a CICS prog entry, you can issue CEDA  DEF  PROG( Program ID) GROUP(group ID). If the group doesn’t exist in the system them CICS will create a new group for you. If your program lies in the same CICS region itself then the mandatory values are Program Id and Group name. If your program is a Remote program , lies in a different CICS region then you need to have the destination CICS region ID and remote Program ID in addition to the program Id and group ID.

Install the Program ID

You can issue a CEDA INS PROG(Program id) GROUP(Group ID). the group and program are must be defined in the system.

Define Transaction ID

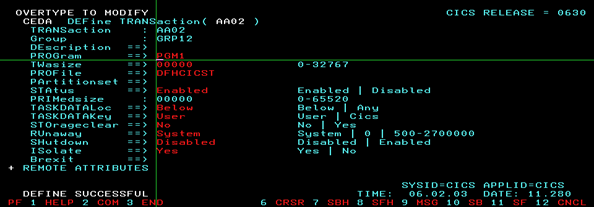

You can Issue a CEDA DEF TRANS(transaction id) group(group id) for this. If the group is not existing in the system then group will be created by CICS. You must Give Program ID (associated with the trans-id) while defining Transaction. Again if your transaction is for a remote program then you must provide the destination CICS region ID and destination transaction name.

Then Issue CEDA INS TRANS(Transaction ID) GROUP( Group ID) to install the transaction id.

Step 3. Run The Program

You can just enter the transaction Id associated with the program to execute it. You can also use CEDF for debugging mode, in CEDF you can see the step by step execution of CICS commands in your program, you can also see the working storage section, EIB Fields values and lot mode when you use CEDF.

Executing with CEDF



Execution without CEDF

here is my CICS-COBOL Source code.. This is a Link program, but I’m not giving my second program’s source code, please comment in this post if you guys want me to post my second program.

Identification division.                                      Program-id.    pgm1.                                          author.        shibu.t.                                       data division.                                                working-storage section.                                      77  msg-len                     pic s9(4) comp.               77  msg-out                     pic x(30).                    01  ws-commarea.                                                   05  ws-pgm1                 pic x(8).                          05  ws-pgm2                 pic x(8).                     77  temp-data                   pic x(10).                    linkage section.                                              01  dfhcommarea.                                                   02  ls-commarea.                                                   05  ls-pgm1             pic x(8).                              05  ls-pgm2             pic x(8).                     Procedure division.                                                Move 'PGM1:YES' to ws-pgm1.                                    Move 'PGM2:NO ' to ws-pgm2.                                    Move 16 to msg-len.                                            exec cics send                                                   from(ws-commarea)                                              length(msg-len)                                                erase                                                        end-exec.                                                      exec cics LINK                                                   program('PGM2')                                                commarea(ws-commarea)                                        end-exec.                                                 *    move ls-commarea            to ws-commarea.               *    move ls-commarea            to temp-data.                 *    move 10                     to msg-len.                        exec cics send                                                   from(ws-commarea)                                              length(msg-len)                                                erase                                                         end-exec.                                                       Exec cics return                                                end-exec.                                                       goback.
